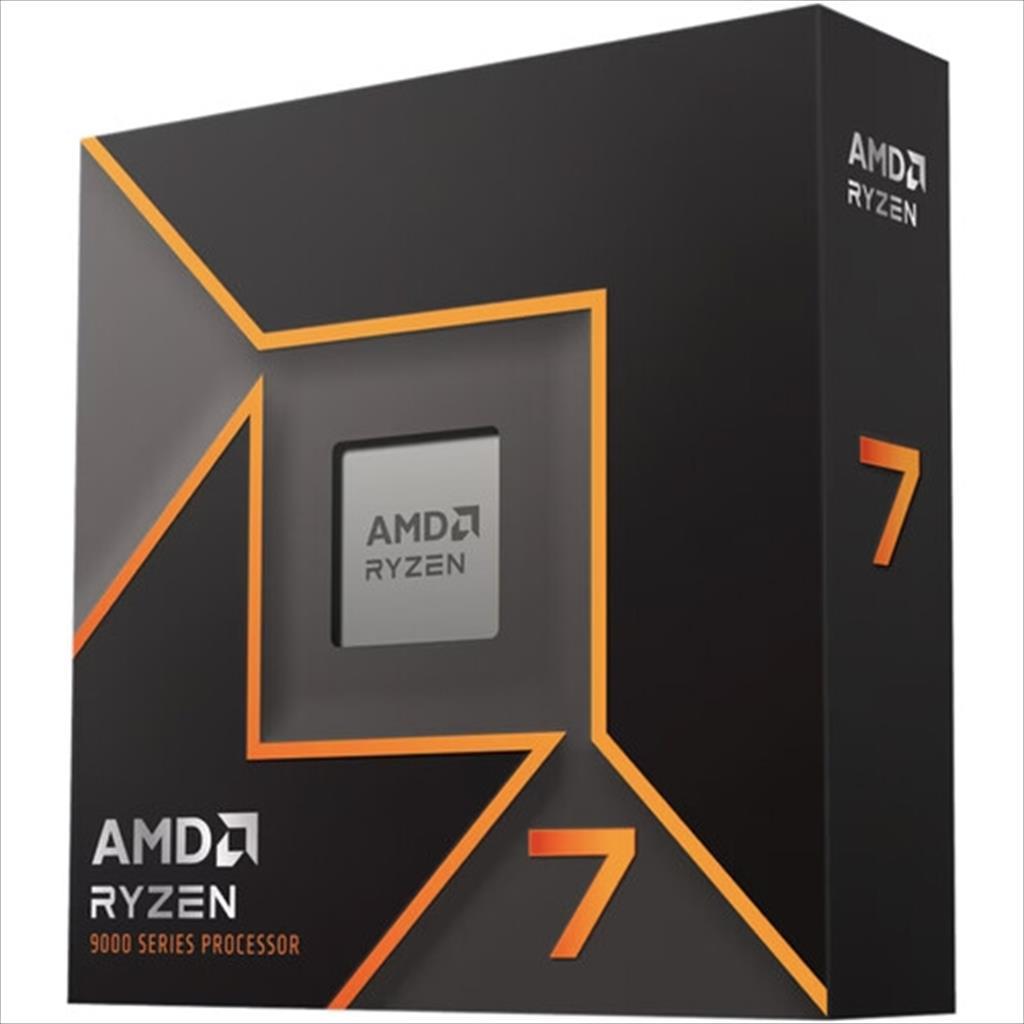

Model Name: AMD RYZEN 7 9700X

Specification :

• Architecture: Zen 5
• # of CPU Cores: 8
• Multithreading (SMT): Yes
• # of Threads: 16
• Max. Boost Clock: Up to 5.5 GHz
• Base Clock: 3.8 GHz
• L1 Cache: 640 KB
• L2 Cache: 8 MB
• L3 Cache: 32 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Premium air cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 95°C
• OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 2.0 (480Mbps) Ports: 1
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28, 24
• Additional Usable PCIe Lanes from Motherboard:
  • X870E: 8x Gen4
  • X870: 4x Gen4
  • X670E: 12x Gen4
  • X670: 12x Gen4
  • B650E: 8x Gen4
  • B650: 8x Gen4
• NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 192 GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  • 2x1R: DDR5-5600
  • 2x2R: DDR5-5600
  • 4x1R: DDR5-3600
  • 4x2R: DDR5-3600
• ECC Support: Yes (Requires mobo support)
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes
