Model name: CUDY LT700E

Specifications:

• CPU Chipset: MT7621
• CPU Details: 880 MHz Dual-Core, MIPS1004Kc
• Memory/Storage:
  • Flash/ROM: 16 MB (128 Mbit) NOR
  • DDR/RAM: 128 MB (1 Gbit) DDR3
• Cellular Standards: 4G LTE Cat. 6
• Cellular Antennas: 2× Internal

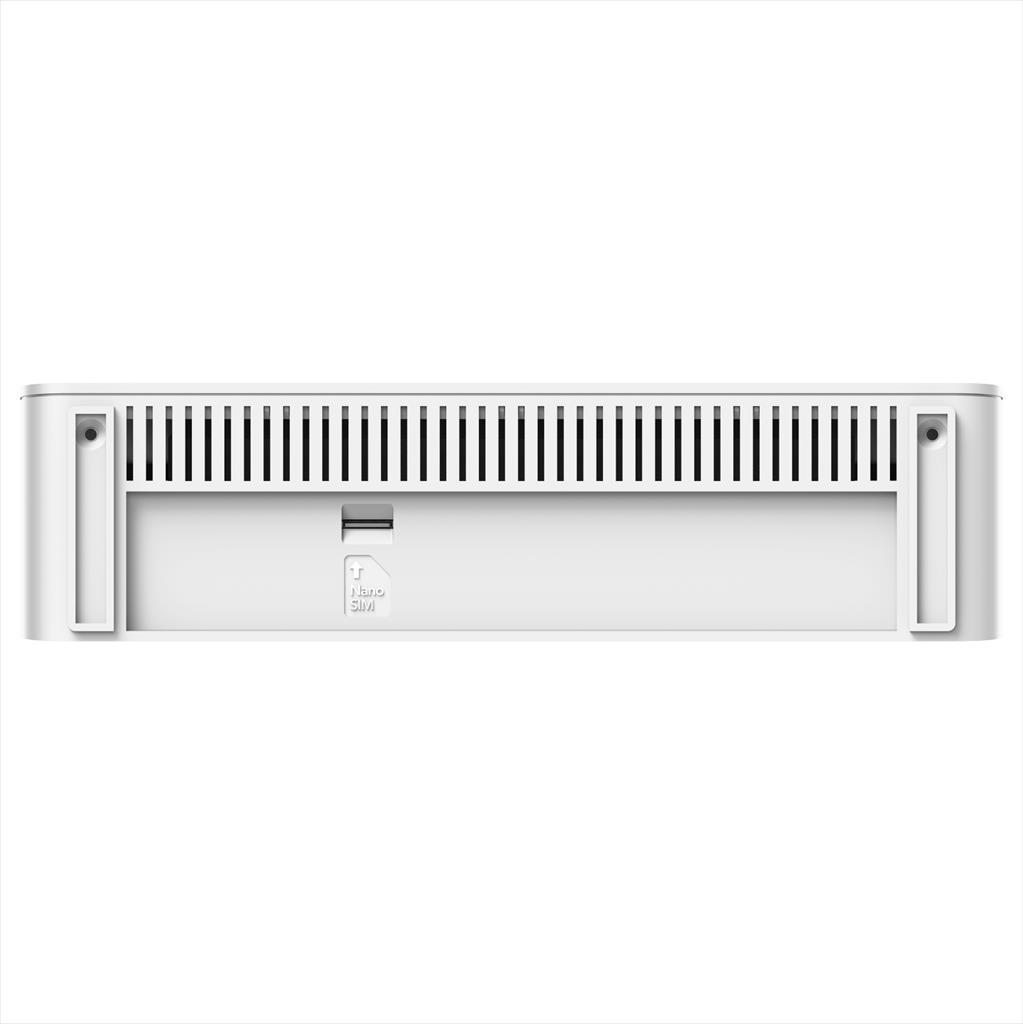

• SIM Options: 1× Nano SIM Slot
• Available Versions: EU, US
• EU Version Cellular: Suitable Region: Europe, Middle East, Africa, Australia, Brazil
• Max Download Speed: 300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)
• Max Upload Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
• Advanced Features: DL 2CA, DL 2×2 MIMO
• Cellular Bands:
  • LTE-FDD: B1/3/5/7/8/20/28/32
  • LTE-TDD: B38/40/41
  • WCDMA: B1/5/8
• Wireless Speeds:
  • 5 GHz Wi-Fi Speed: 867 Mbps
  • 2.4 GHz Wi-Fi Speed: 300 Mbps
• Wi-Fi Streams:
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Internal
• 5 GHz Antenna Gain Max: 4.99 dBi
• 2.4 GHz Antenna Gain Max: 5.18 dBi
• Beamforming: True
• Range Performance: Max: 170 m (558 ft)
• Wall Performance:
  • Two wooden walls with thickness < 10 cm (4'')
  • One concrete wall with thickness < 20 cm (7'')
• Physical Buttons:
  • WPS Button
  • Reset Button

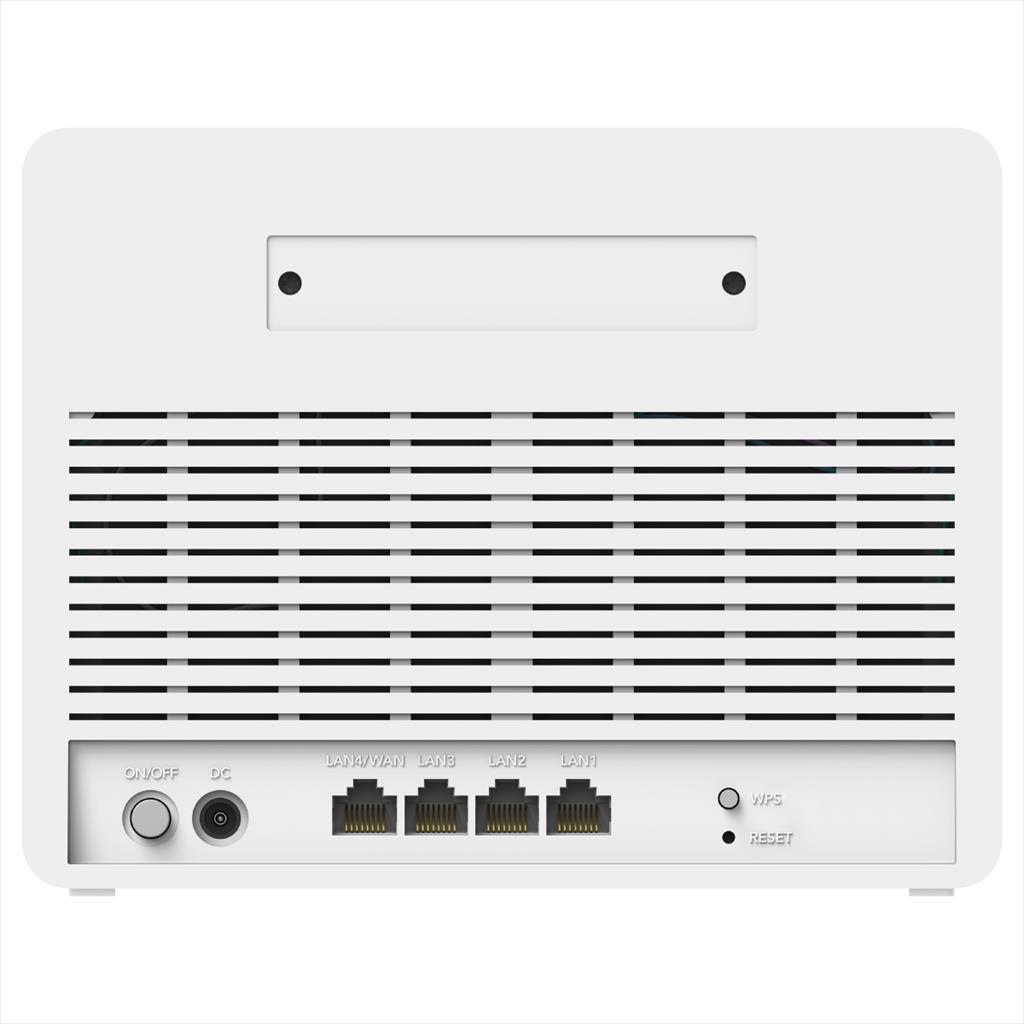

• Gigabit RJ45 Ports: 4
• Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
• LED Indicators:
  • System
  • Internet
  • Wi-Fi
  • LAN
  • WAN/LAN
  • Cellular Signal Strength
• Power Input: DC Jack
• Power Methods: DC
• Power Adapter:
  • Input: 100 ~ 240 V, 50/60 Hz AC
  • Output: 48V 1.5A DC
• Max Power Consumption: 11.2W
• Idle Power Consumption: 3.6W
• Reliability: EMS: ESD: Contact: 4kV; Air: 8kV
• Environment:
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Certifications: FCC, CE
