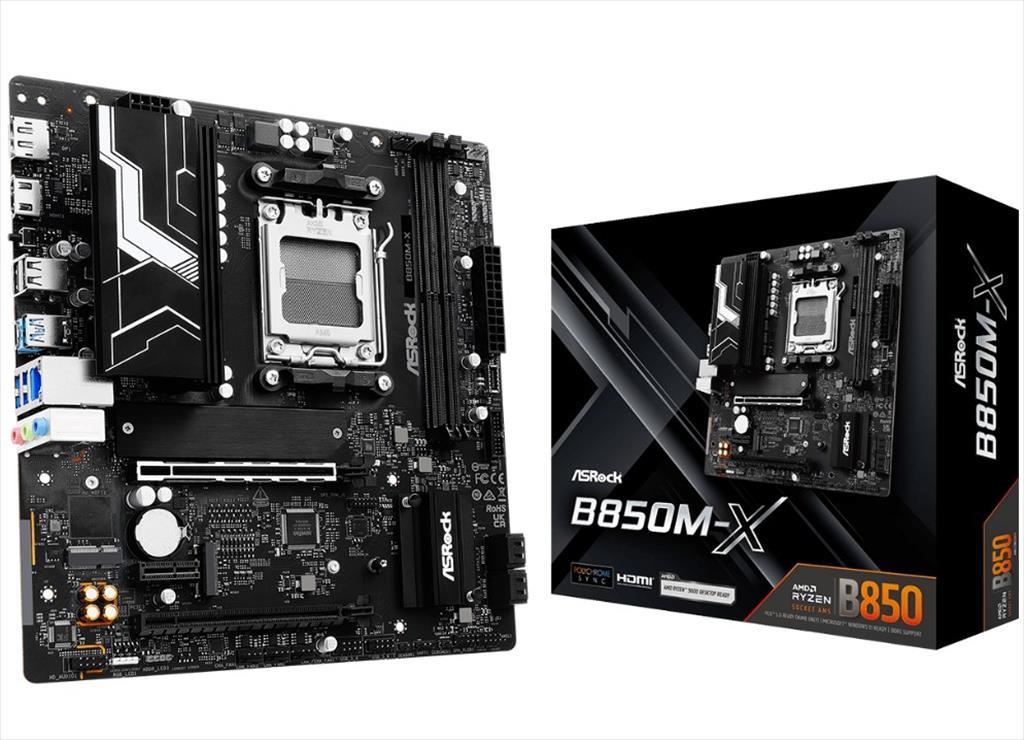

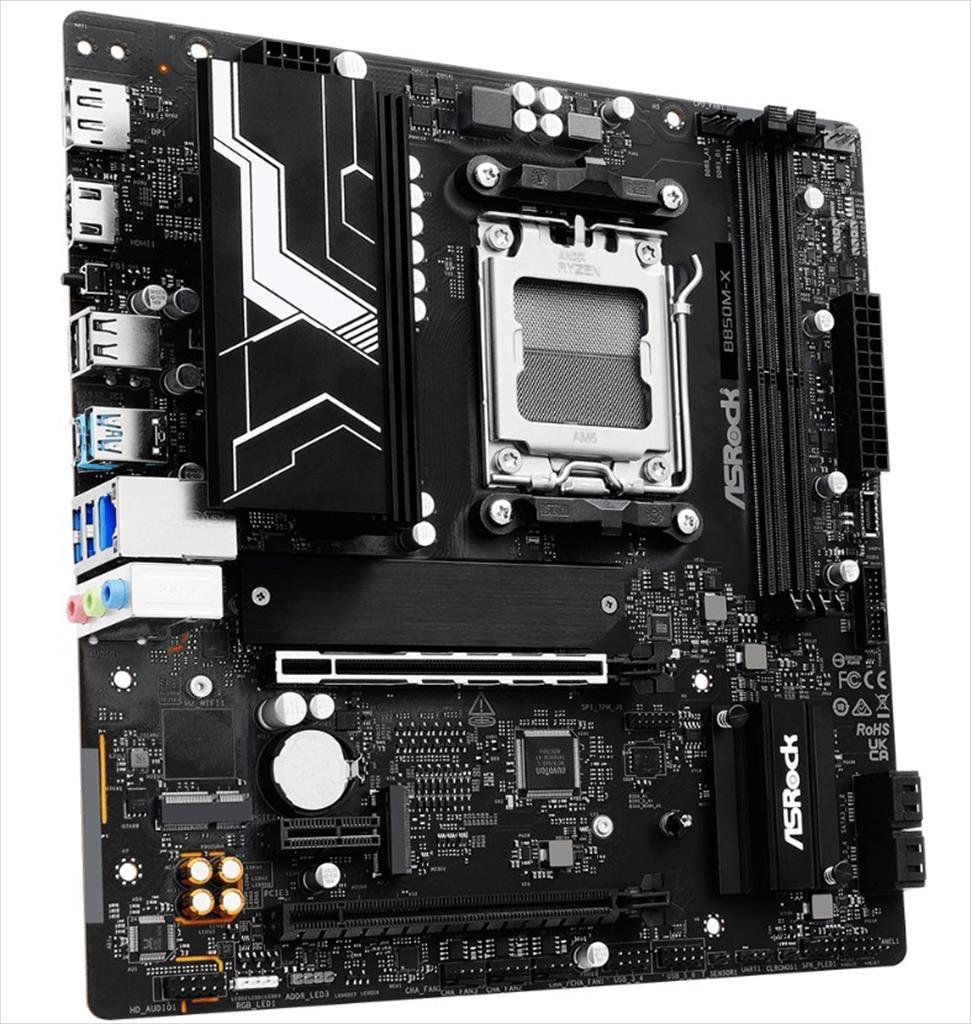

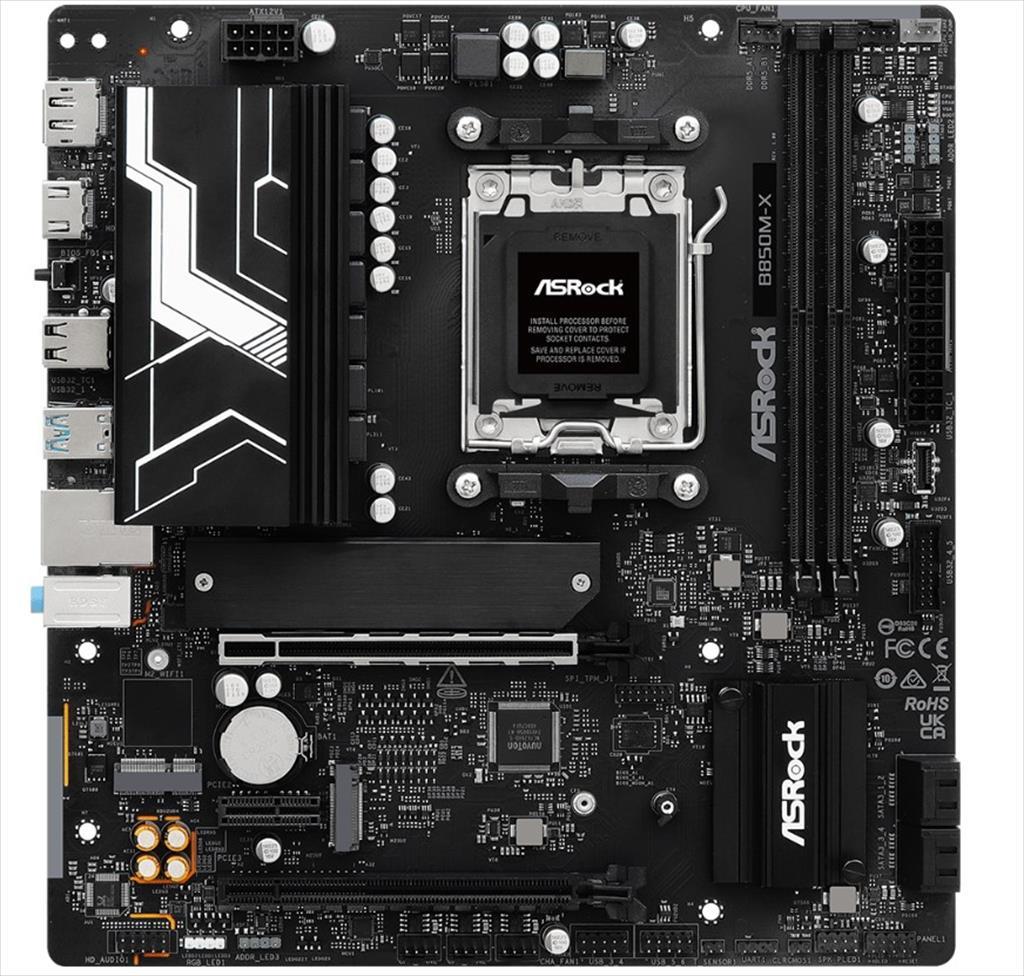

Model Name: MB AM5 B850M-X ASROCK

Specification :

• CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Chipset: AMD B850
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN:
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
  • Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI
• Wireless LAN:
  • Slots:
    • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
    • 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Storage:
    • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 4 x SATA3 6.0 Gb/s Connectors
  • RAID:
    • SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 3 x USB 3.2 Gen1 Type-A, 1 x USB 2.0, 1 x USB 3.2 Gen1 Type-C, 1 x USB 2.0
    • Front: 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
  • Connectors:
    • 1 x Thermistor Cable Header, 1 x SPI TPM Header
    • 1 x Power LED and Speaker Header, 1 x RGB LED Header
    • 3 x Addressable LED Headers, 2 x CPU Fan Connectors (4-pin)
    • 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x AIO Pump Fan Connector (4-pin)
    • 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector
    • 1 x Front Panel Audio Connectol, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2

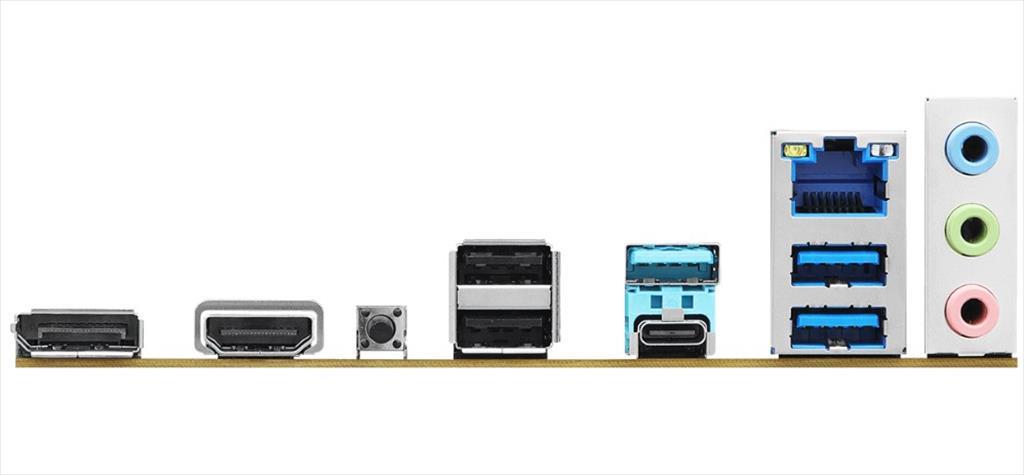

  • Rear Panel I/O:
    • 2 x Antenna Mounting Points, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x RJ-45 LAN Port
    • 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports
    • LAN, Audio Jacks, BIOS Flashback
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC, Full HD UEFI
  • Form Factor: Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
  • OS Support: Microsoft Windows® 10/11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
